| Applicable Industries | Manufacturing Plant, Construction worksEnergy & Mining, Other |
| Place of Origin | Hebei, China |
| Weight | 25000 KG |
| Warranty | 1 Year |
| Core components | motors, engines, bearings, others |
| Mechanical test report | Provide |
| Video outgoing inspection | Provide |
| Warranty of core components | 1 Year |
| Main selling point | High productivity |
| situation | brand new |
Technical Parameters

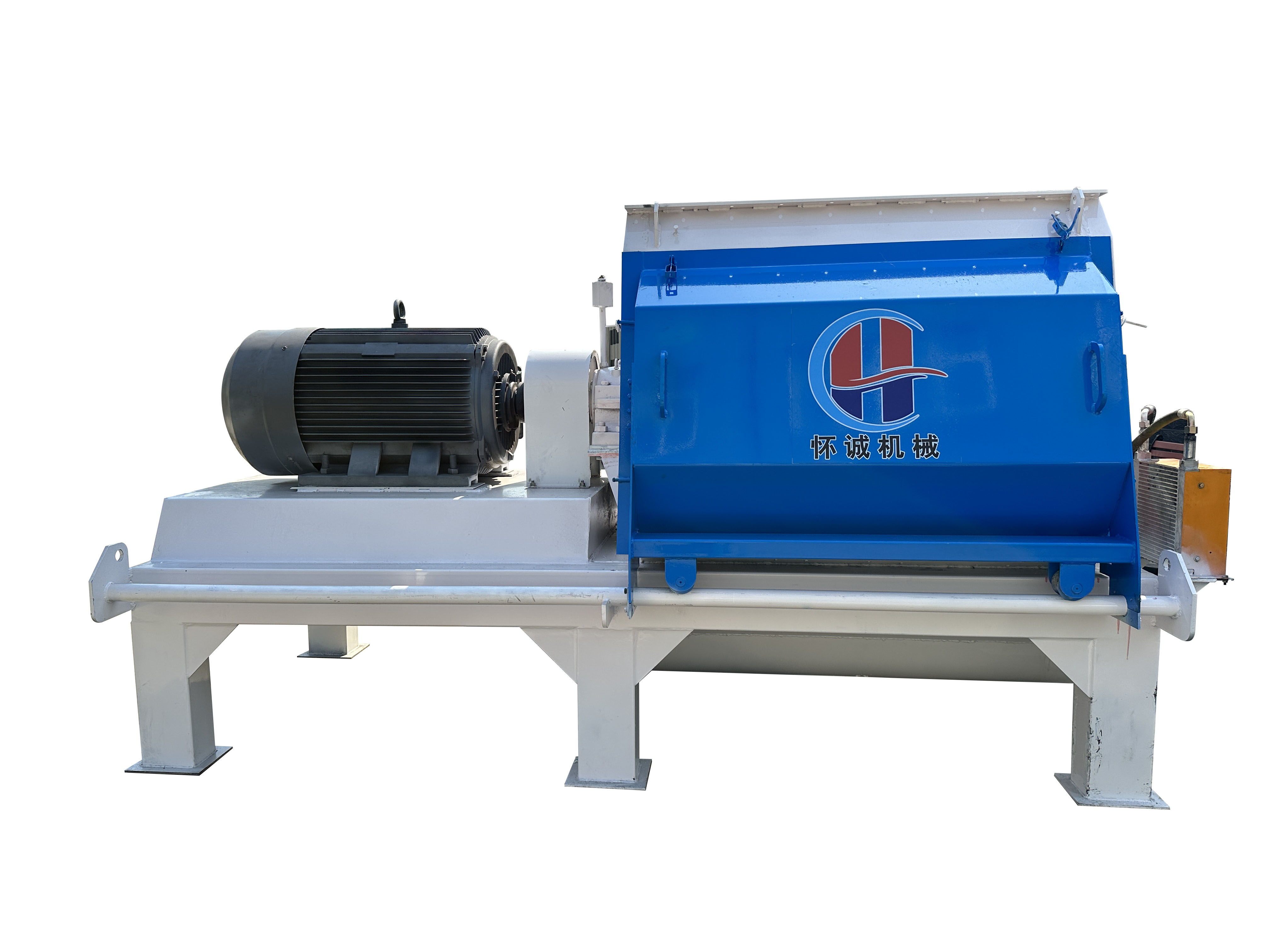

Large – Hammer Crusher
| Model | Power(kw) | Production （t/h） |
Hammer Qty | Dimension （mm） |
| 50-4 | 22 | 1 | 32 | 1400*800*1250 |
| 60-6 | 37+7.5 | 1-1.2 | 56 | 1800*900*1550 |
| 80-8 | 55+11 | 1.5-2 | 80 | 2200*1800*1500 |
| 80-12 | 90+15/110+15 | 3-4 | 180 | 2300*2300*1500 |
| 90-15 | 132+15 | 4-5 | 240 | 2500*2600*2200 |
Single/Double Rotor Hammer Crusher
| Model | Power(kw) | Production（t/h） | Hammer Qty | Dimension（mm） | Weight |
| YFCZ40 | 7.5 | 0.2-0.5 | 12 | 1310*800*1070 | 0.27 |
| YFCZ50 | 15 | 0.6-0.8 | 16 | 1380*800*1070 | 0.45 |
| YFCZ65×27 | 22 | 0.8-1.5 | 24 | 1500*1000*1100 | 1.1 |
| YFCZ65×55 | 37-45 | 1-2 | 48 | 1700*1000*1100 | 1.7 |
| YFCZ65×75 | 55-75 | 2-3 | 72 | 2100*1000*1100 | 2.2 |
| YFCZ65×100 | 90-110 | 3-4 | 96 | 2400*1000*1100 | 2.6 |
| YFCZ130×55 | 110-160 | 5-6 | 80 | 2800*1620*2100 | 5.6 |
| YFCZ130×100 | 160-220 | 7-8 | 160 | 3020*1620*2170 | 7.1 |
Hammer crusher working principle

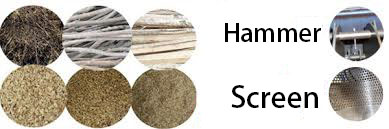

The working principle of the hammer crusher is to use the high-speed rotating rotor and hammer to impact and crush the materials. After the material enters the crusher, it is hit by the hammer on the rotating rotor, which generates a huge impact force and causes the material to deform and break. During the rotation process, the materials are continuously hit and impacted, and finally achieve the required crushing effect. At the same time, through the setting of the screen, the particle size of the material can be controlled to make it meet production requirements.
Hammer crusher application fields
Mining field: Hammer crushers are widely used in the crushing and beneficiation of ores. They can crush raw materials from large blocks into the required particle size, providing a reliable raw material basis for subsequent beneficiation work.
Construction field: In the process of construction waste disposal and demolition of old buildings, the hammer crusher can effectively crush concrete, bricks and other construction waste into recycled aggregates to achieve effective recycling of resources.
Metallurgical field: In the metallurgical industry, hammer crushers can be used to crush raw materials in ironmaking, steelmaking and other processes to improve the uniformity of the charge and the discharge effect of slag, thereby improving production efficiency.
Future trends
Intelligence: Introduce intelligent control systems to realize automated operation and remote monitoring of equipment, improving production efficiency and safety.
Green and environmentally friendly: Using new energy-saving and environmentally friendly materials and technologies to reduce energy consumption and environmental pollution, and meet the requirements of sustainable development.
Multi-functionality: Combining multiple crushing modes and processes to achieve multi-functional application of the equipment to meet the needs of different industries and production processes.
As an innovative crushing equipment, hammer crusher plays an important role in industrial production. By in-depth understanding of its working principles, application fields and future development trends, we can better grasp its application prospects in the engineering field and promote the continuous innovation and development of related technologies.
Company Profile
The company is located in Xingtang Economic Development Zone, Shijiazhuang, Hebei Province. The company has been committed to the research, design, development and manufacturing of various types of dust collectors, magnetic separators, vibrating screens, dryers, sand washers, conveyors, etc. Mining Equipment. The company adheres to the concept of “technology first, integrity first”.
Technical strength:
Huaicheng Machinery has an efficient team composed of experienced engineers and technical experts, constantly pursuing technological innovation and product upgrades. In terms of mechanical structure design and automated control systems, Huaicheng Machinery has always maintained a leading position in technology.
Manufacturing process:
Huaicheng Machinery has advanced production equipment and a strict quality control system to ensure that every piece of equipment can meet customer requirements. The company focuses on the refinement and standardization of production processes, using advanced processing techniques and sophisticated testing methods to ensure product stability and reliability.
Customer service:
Huaicheng Machinery always puts customer needs first and takes satisfying customer needs as its own responsibility.
Looking to the future:
As an enterprise that constantly pursues excellence, Huaicheng Machinery will continue to adhere to the purpose of “quality first, customer first”, continuously improve its technical strength and service levels, and provide customers with better industrial solutions. In the future, Huaicheng Machinery will continue to be committed to technological innovation and product upgrading, and work hand in hand with customers to create a better future together!
Hebei Huaicheng Machinery Equipment Co., Ltd. looks forward to working with you to create
brilliance together!
Pack and ship
The machine is wrapped in film, which is effectively waterproof and dustproof. When the machines arrive at your facility, they will be clean and brand new.
