The role of shredders in waste treatment The role of shredders in sustainable development

In today’s era of increasing attention to environmental protection and sustainable development, all walks of life are striving to find more efficient ways to handle waste and recycle resources. In this increasingly challenging environment, shredders have become a shining pearl in the industry with their efficient, reliable processing capabilities and environmentally friendly features.

Industry-specific attributes

Max.Production Capacity (kg/h)

1 t

Other attributes

Place of Origin	Hebei, China
situation	New
Plastic type	PVC
Warranty	1 Year
Main selling point	energy saving
Dimensions (length*width*height)	variable
Color	variable
Mechanical test report	Provide
Video outgoing inspection	Provide
Voltage	customer requirements
Brand name	Huaicheng

Packaging and shipping

Packaging details	The shredder is wrapped in film, which is effectively waterproof and dustproof.When the machines arrive at your facility，they will be clean and brand new.
Place of shipment	HeBei



Technical Parameters



Model	Dimensions(L*W*H)	overall power(KW)	Cutter head diameter(mm)	Blade thickness(mm)	Yield	Weight
Type 400	2100×1000×1350	7.5 KW*2	200	20	0.5-1.5 t/h	1.5 t
Type 600	2500×1100×1900	11 KW*2	220	20	1-2 t/h	2.1 t
Type 800	2900×1240×1900	18.5 KW*2	260	30	1.5-3 t/h	2.8 t
Type 1000	3200×1700×2000	37 KW*2	400	80/50（customizable）	2-5 t/h	6 t
Type 1200	3800×1800×2400	37 KW*2/45 KW*2	450	80/100（customizable）	4-7 t/h	7.8 t

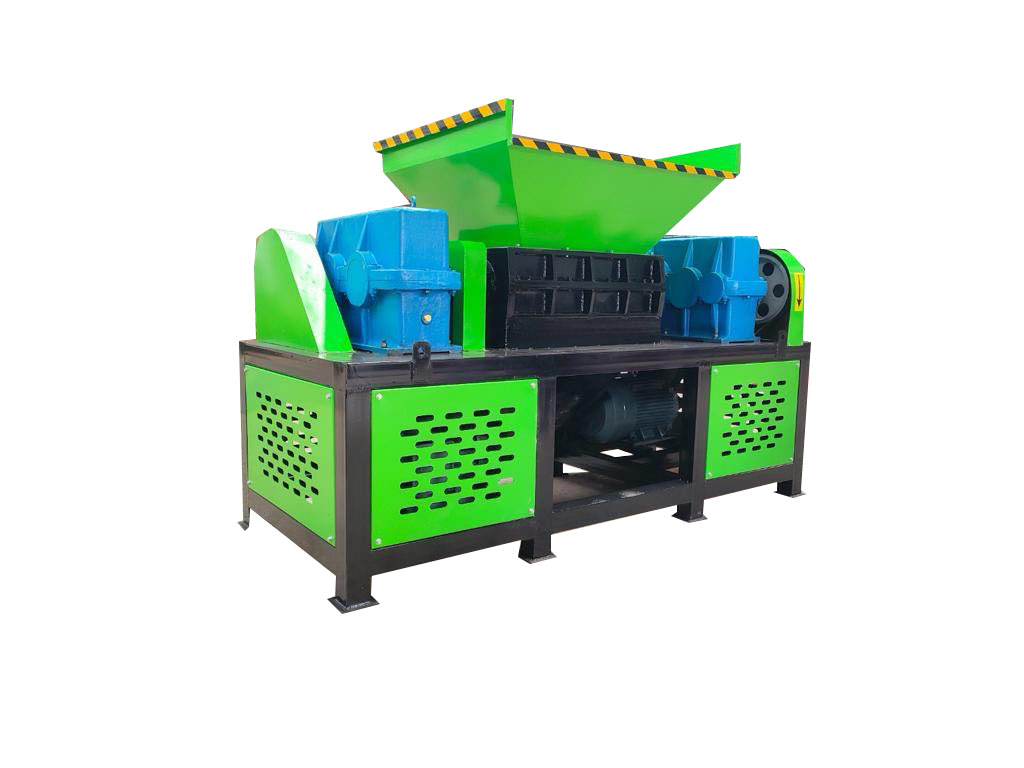

Product Description

The shredder is a kind of crushing equipment specially developed for the recycling industry. It is used to shred various soft and hard plastic products, which is conducive to the recycling of waste materials. The shredder has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has start, stop, reverse and overload automatic reverse control functions.
The shredder adopts dual-axis independent driving, so that the materials are pressed accordingly during production to achieve automatic feeding function. The unique cutter shaft structure and rotating cutter will not cause any problems during the low-speed and high-torque production process. The phenomenon of shaft wrapping or equipment jamming occurs, thereby improving production efficiency. This equipment is suitable for crushing various plastic products.



Application areas

The shredder is used to process waste and waste materials generated during the production process to achieve resource reuse; in the field of environmental protection, the shredder is a key tool for waste treatment. By fragmenting the waste, the waste is reduced. volume for easy transportation and handling.



Features

1.The plastic shredder has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has start, stop, reverse and overload automatic reverse control functions.
2.The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3.The bearings are six-layer sealed, effectively waterproof and dustproof, and extend the service life of the bearings.
4.After the tool is worn, the tool coating and welding repair technology is used to realize the repeated use of the tool and greatly reduce the maintenance cost of the tool. .
5.The split box design allows the entire cutter shaft (shaft, blade, bearing, sealing system) to be removed quickly and easily.
6.The cutting tools are arranged in a spiral to achieve efficient cutting.
7.Both the inner hole of the tool and the spindle surface adopt a hexagonal design to achieve uniform force stress on the tool.
8.Different types of knives can be selected according to the different materials and product shapes to be shredded.



Sustainability promoter

The shredder is not only a tool for waste disposal, but also a promoter of sustainable development. Processing waste through a shredder can convert it into renewable resources, reducing the need for raw materials, reducing energy consumption and environmental pollution. In addition, the shredder also promotes the development of circular economy and realizes the effective utilization and recycling of resources.



Future prospects

With the continuous advancement of technology and the enhancement of environmental awareness, the application prospects of shredders will be broader. In the future, we can expect shredders to play a more important role in waste treatment, resource recycling and environmental protection, and make greater contributions to building a green and sustainable society.



Increased environmental awareness

With the continuous improvement of environmental awareness, people have higher and higher requirements for waste treatment. The use of shredders not only reduces the volume of waste, but also reduces the impact of waste on the environment. By effectively processing and recycling waste, we can reduce the exploitation of natural resources, reduce environmental pollution, and achieve sustainable development.

As an important waste treatment equipment, the shredder plays an important role in promoting fragment regeneration, protecting data security, and enhancing environmental awareness. We should fully realize the importance of the shredder, make reasonable use of this equipment, and work together to clean the construction.



Company Profile

The company is located in Shijiazhuang Xingtang Economic Development Zone, Hebei Province.The company has been committed to the research, design, development and manufacture of all kinds of dust remover, magnetic separator, vibrating screen, dryer, sand washing machine, conveyor and other mining equipment.The company abides by the concept of “technology first, honesty first”, and wins the trust of customers with its technology and product quality, reasonable price and timely service.

 Packing and shipping
